Medium Service

Static Dissipating Hose

Part Number: 9SFTPUW_ _SD

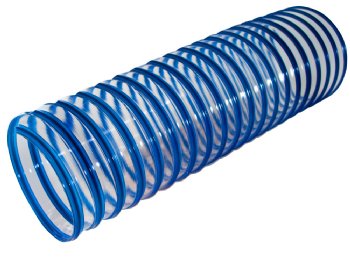

Novaflex Static Dissipating Urethane Duct (Wall gauge 0.030")
Manufactured using inherently dissipating urethane permanently protects against electrostatic discharge. The static dissipating material with the wire helix allows for safe grounding when used with metallic fittings.
Excellent flexibility with maximum abrasion and superior tear resistance and high tensile strength. The special molecular bonded construction generates less turbulence. Clear construction for visual monitoring and maximum flow efficiency. Lightweight and extremely flexible. Will perform under the toughest conditions. Manufactured from FDA approved material.

Plastics processing, dust and shavings
Woodworking equipment
Plant debris collection
Dust collection
Material handling

Temperature range: –65°F to 200°F
Lengths: 25 & 50 ft
Sizes: 2” to 12” (larger diameters available, please contact the factory)
Compression ratio: 2:1

*Conductivity of hose should be tested regularly. Test with OHMS meter using conductive fittings inserted into each end of hose.
