Petroleum Hose - Tank Truck

Oilfield Frac Hose

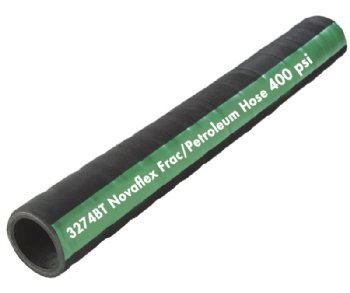

Part Number: Novaflex 3274
Oil Field Fracturing Hose is designed for higher pressure suction and discharge applications that require working pressures up to 400 psi. This hose is a rugged design and has an all weather cover which is resistant to oil, cuts, abrasion and gouges. This hose can have a UHMWP wear cover added for additional abrasion resistance (U version). The tube is resistant to petroleum products with aromatic content to 55%.

Construction
Tube: Nitrile Reinforcement: Multiple plies polyester tire cord and helical wire.
Cover: a. Smooth black oil, ozone & UV resistant compound.
b. Optional UHMWP wear cover in the U version
Temperature range: -40°F (-40°C) to +200°F (+93°C)
Marking: Novaflex 3274BT (3274BTU) Oil Field Frac/Petroleum Discharge Fuel Compatibility: Ethanol up to E85. Biodiesel up to B20
Oilfield Frac Hose
Oilfield Frac Hose
