Chemical

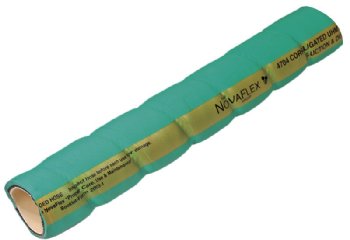

Corrugated UHMW Chemical Suction & Discharge Hose

Part Number: Novaflex 4704
A corrugated version of 4700, designed to offer added flexibility. Novaflex 4704 UHMW is a corrugated chemical suction & discharge hose.

*WARNING!! (See below)

Construction:
Tube: Clear Ultra High Molecular Weight polyethylene.
Reinforcement: Multiple plies of high tensile textile with dual helix
Cover: Green abrasion resistant green EPDM
(Available in blue, yellow black and grey, white - with 400ft order)
Length:100 ft.
Temperature Range: up to -40°F to +250°F.
Consult chemical resistant chart
Not for steam service. Can be open end steam cleaned
Non-stock orders - (other colour hose covers: blue, black, purple, yellow, white, grey) are available and require a 400ft minimum order per I.D.

*WARNING! Elevated temperatures can change the chemical resistance rating of 4704. Check the chemical resistance charts published by Novaflex to verify that the chemical to be transferred is rated for use with the UHMWP tube at the temperature & concentrations listed. Most chemicals become more aggressive the higher the temperature, reducing the ability of the tube material to withstand them. Compatibility information is available from Novaflex. If no data exists, it is the users responsibility to determine if the hose is compatible with the chemical to be transferred. Never use Novaflex 4704 above the ratings listed by Novaflex.
Corrugated UHMW Chemical Suction & Discharge Hose
Corrugated UHMW Chemical Suction & Discharge Hose
