Marine Fuel

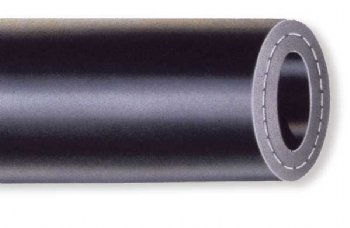

Barrier Fuel Feed & Vent Hose

Part Number: Series 360-09
Rubber Barrier Fuel Feed and Vent Hose. Designed to meet fuel hose specifications of SAE J1527 - A1-15, ISO 7840 and certified to be EPA compliant. Novaflex 360-09 is certified by the EPA to be compliant with the 15G/M^/Day emission standard. The barrier construction provides the lowest permeation rating available for any marine fuel hose. (Meets CARB). Handles gasoline, diesel and alcohol blended fuels, and meets all requirements of USCG, NMMA, ABYC. It is certified by IMCI for use in the European community. Can be used in a feed or vent application. The flame resistant cover is designed for enclosed engine compartment applications.

Construction:
Tube: Nitrile thermoplastic laminate (NTL)
Reinforcement: Multiple high tensile textile spirals
Cover: Black OZO
Length: 600ft. Reel lengths - cut lengths add 10%
Temperature Range: -30°F to +180°F

Fuel Compatibility:
Compatible with Ethanol Fuel Grades: E10, E15 to E85
Compatible with Bio-Diesel Fuel Grades: All Grades up to B100

Barrier Fuel Feed & Vent Hose
Barrier Fuel Feed & Vent Hose
