Heavy Duty Service

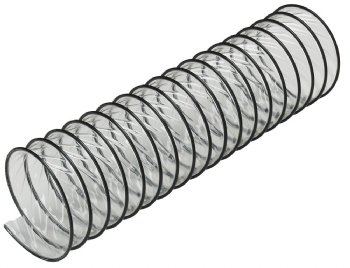

U-Lok 1010

Part Number: 3UL1010
A clear duct designed for flexibility with  excellent abrasion resistance. Clear wall  for flow monitoring. External metallic helix for scuff resistance.

Applications
Extremely flexible
Ideal for use with articulating equipment
Compressible, saw dust control
In plant clean up
(FDA approved material)

Construction:
Product code: 3UL1010
Material: Urethane, 12 mil, clear.
Construction:  Mechanical lock,  corrosion resistant helix
Diameters: 3” to 24”.
Bend radius: =1.5 x I.D.
Weight: 6” I.D. =.7 lbs/ft.
Length: 25 ft.
Compression Ratio: 4:1
Temperature Range: -20°F to +250°F
Colour: Clear

U-Lok 1010
U-Lok 1010
